High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity

High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity

2 Stage Color Sorter

4 Chute Sorting Machine

10-20Ton/h Capacity Color Separation Machine

Plaats van herkomst:

Hefei, China

Merknaam:

WenYao

Certificering:

CE,ISO9001

Modelnummer:

WYDB4

Contacteer ons

Verzoek om een Citaat
Productdetails
Machinefunctie:
Kleurvorm Sortermachine
Nauwkeurigheid:
99,99%
Capaciteit:
10-20Ton/h
Camera en sensor:
Japan Toshiba
Lucht-/oliefilter:
Janan CKD -merk
Lichten:
Duitsland Osram LED -lichtbron
Machinekleur:
Blauw, Zwart of Aangepast
Afstandsbediening:
Beschikbaar
Garantie:
2 jaar
Na verkoop:
Online, video, ingenieur naar de fabriek van klanten
Taal:
Meer dan 20
Programma's:
Meer dan 50
Accessoires:
Compressor, luchtdroger, luchttank, liften
Betaling & het Verschepen Termijnen
Min. bestelaantal
1
Prijs
29800
Levertijd
15-20 dagen
Betalingscondities
T/t, l/c
Levering vermogen
20 stuks/maand
Productomschrijving

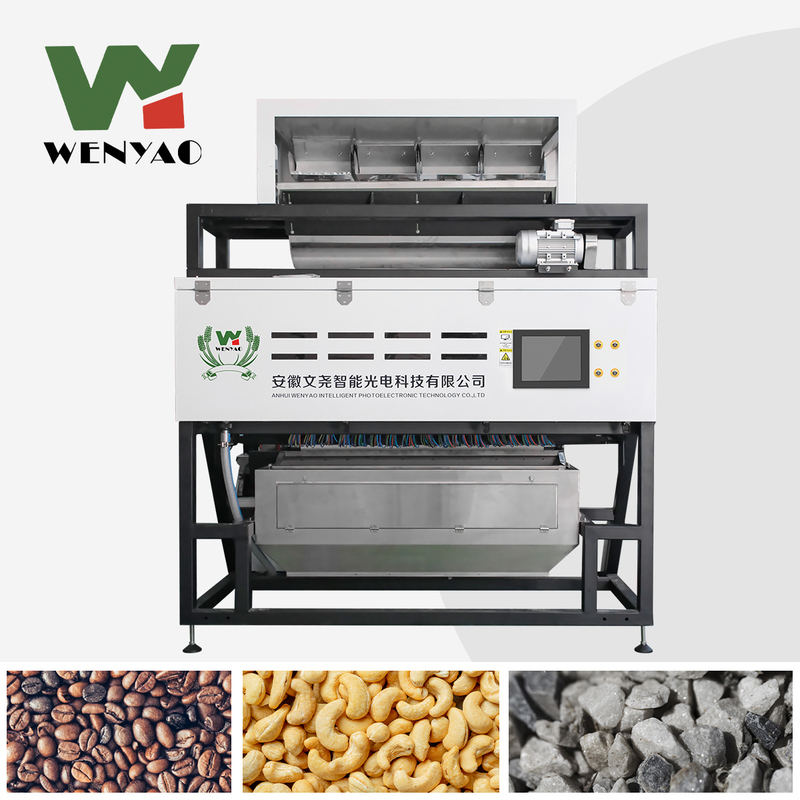

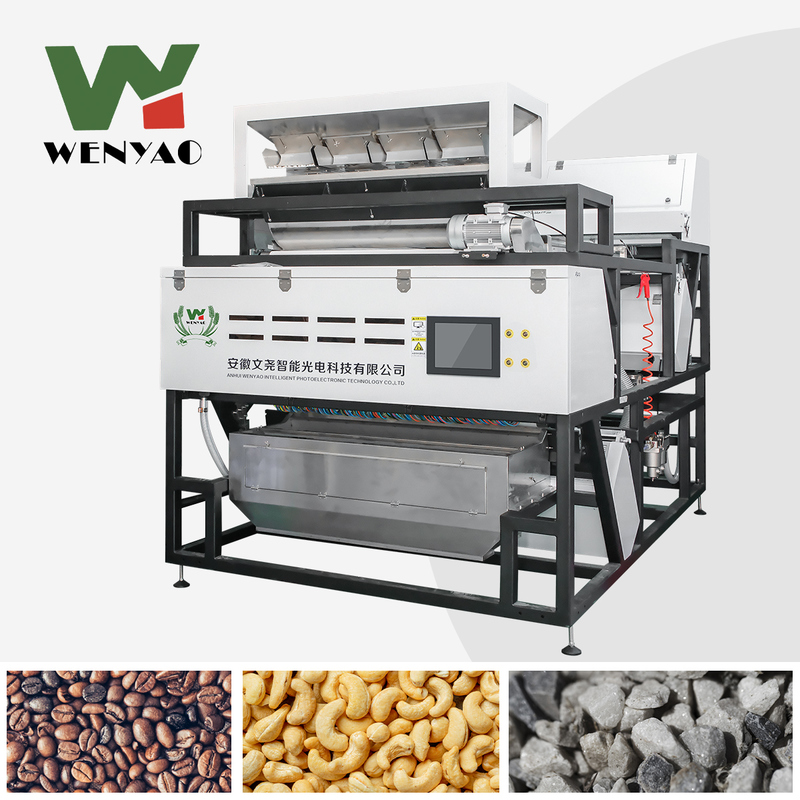

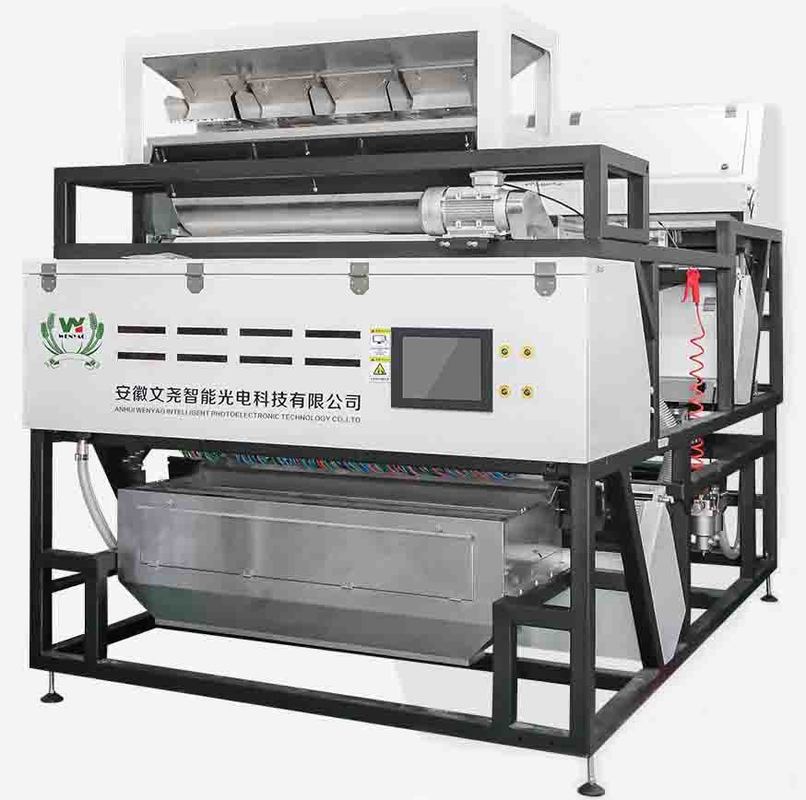

High Capacity 2 Stage 4 Chute Quartz Minerals Color Separator
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 0
Wenyao Color Sorting Machine Function
When the color sorter is working, materials in the feed hopper are uniformly distributed across each chute by the vibrator. As materials drop, the CCD sensor detects any unqualified materials or impurities, triggering the ejector to remove defective items.
  • Focus On Systematic And Original Design
  • Multi-Dimensional Intelligent Color Sorting
  • Intelligent And Convenient Interactive Interface
  • Make Color Sorting More Professional And Intelligent
Specifications
Model Power Voltage Air Pressure Air Consumption Dimension
WYB1 3.1KW 180~240 50HZ 0.6~0.8Mpa <1.5m³/Min 3189*860*1485mm
WYB2 3.6KW 180~240 50HZ 0.6~0.8Mpa <2.0m³/Min 3189*1160*1485mm
WYB4 4.7KW 180~240 50HZ 0.6~0.8Mpa <3.0m³/Min 3189*1910*1510mm
WYB6 6.6KW 180~240 50HZ 0.6~0.8Mpa <4.5m³/Min 3189*2510*1510mm
WYDB2(Two Layer) 6.2KW 180~240 50HZ 0.6~0.8Mpa <3.0m³/Min 3435*1160*2360mm
WYDB4(Two Layer) 7.8KW 180~240 50HZ 0.6~0.8Mpa <6m³/Min 3435*1910*2360mm
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 1 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 2
Key Configurations
  • Engine: High-torque, low-emission diesel engine (Tier III compliant)
  • Hydraulic System: Precision-controlled pumps and valves for smooth operation
  • Undercarriage: Reinforced steel tracks with adjustable tension
  • Cab: Ergonomic ROPS/FOPS-certified cabin with air conditioning
  • Arm & Bucket: Multiple size options (standard, long-reach, heavy-duty)
  • Control System: Intelligent monitoring panel with fault diagnostics
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 3 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 4 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 5 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 6 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 7 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 8
Sorting Performance
Before Sorting
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 9
After Sorting
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 10
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 11
Company Profile
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 12
Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd. is located in Hefei City Anhui China. We are a comprehensive high -tech enterprise integrating scientific research, development, production, sales and service of intelligent C C D color sorter. Our core parts like high speed sensor, 5400 camera pixels with high sorting accuracy reach at 0. 0 2 square millimeter, high frequency long time service ejector, stable quality L E D light, long time service power,special design sorting box, special process channels, food grade stainless steel hopper, Our company produce quality products with advanced technology, production testing equipment and better quality assurance system. pass CE certificate. Our machines are used for sorting rice, wheat, corn, peanuts, coffee beans, walnuts, almond, cashew nuts,
sesame, tea, plastic and other agricultural and industrial products.
Our machines with high stable quality performance, prompt after sales service and faster delivery, get great reputation from customers. We supply 24 multiply 7 service and technical support, Service engineer are available to all of the countries to give customer installation and operation training,Machines are exported to south Asia, southeast Asia,Europe, middle east, Africa and south America.
Our company has advanced technology, with a high level of technology research and development team, won 8 invention and utility model invention patents.
Our mission and value: there are no difficult materials to sort! customer first, service first, teamwork, create a win -win situation. Welcome to use wenyao color sorter!
Successful Cases
High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 13 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 14 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 15 High Capacity 2 Stage 4 Chute Quartz Minerals Glass Cullets Color Sorter Sorting Machine with 10-20Ton/h Capacity 16
After Sales Service
  • Standard Warranty: 24 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
