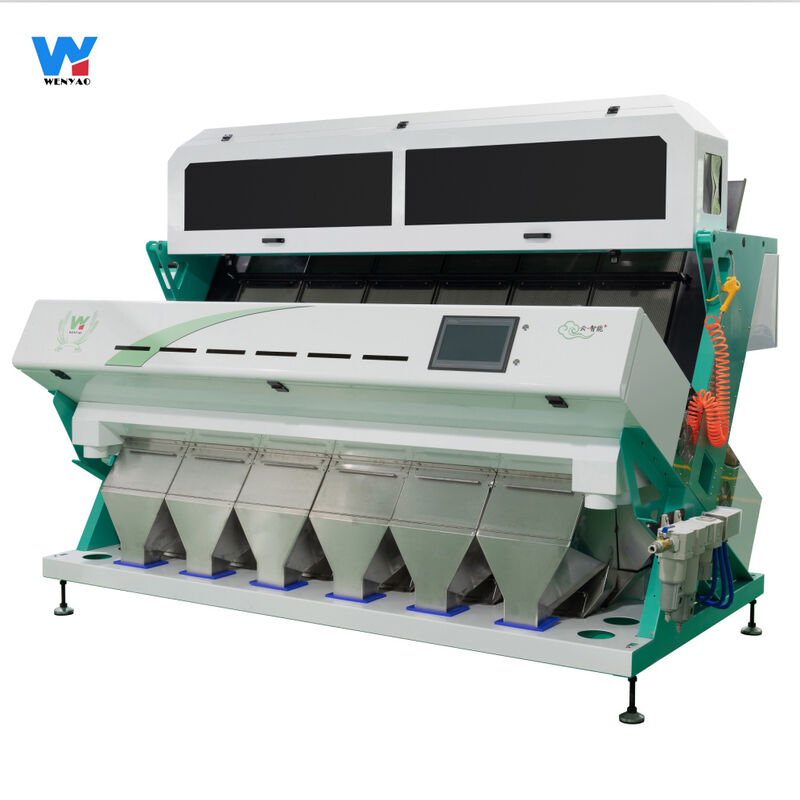

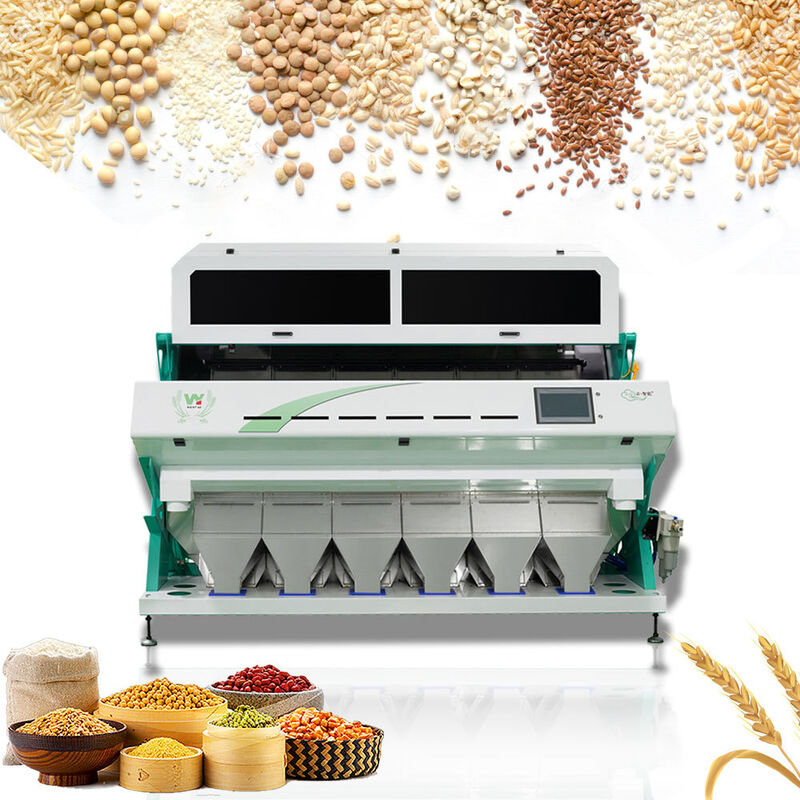

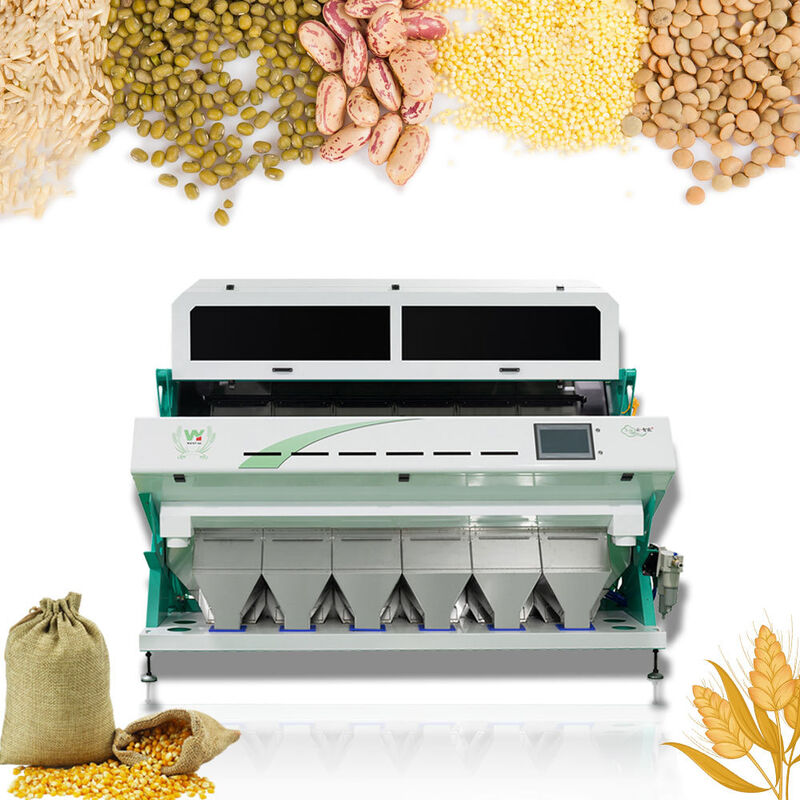

Multi-Function Coffee Bean Color Sorter High-Efficiency Optical Sorter for Nuts, Beans and Dehydrated Veggies
Color Sorter Technical Features :
| MODEL |
WYCS6-384 |
| Chutes/Channels |
6/384 |
| Throughput(t/h) |
1-2t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
3.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<3.2M3/Min |
| Weight |
1100kg |
| Diamension(L*W*H) |
2595*1540*1852mm
|
AAdvantage:
17 Years Of Deep Cultivation In Color Sorting, Doubled Production: 17 years of deep cultivation in color sorting, both internal and external improvements, and doubled production. With new evolution, improved efficiency and increased production, platform-based models, upgraded modular structure, load increased by 3-5 times, feeding and rejection system efficiency increased by 30%, dust removal optimized by 50%, and production increased by 66%.
Hundreds Of Algorithms To Identify Colors And Shapes: Hundreds of algorithms have been developed to identify colors and shapes. Shape and color selection by AI empowerment, intelligent system, identification as fine as 0.15mm, 350 million pixels ultra-clear resolution, new shape selection algorithm for yellow, white, transparent, long, round, and broken materials.
Thousand Process Quality Inspections, Consistent Quality: Nearly a thousand process quality inspections, consistent quality, and excellence. Thousands of quality inspections, quality control, standardized production, more stable equipment effects, SOC smart core matching intelligent high-frequency solenoid valve, blowing thousands of times per second, lower carry-out, higher clean rate.
Cooperating With 10000+ Customers, Worry-Free After-Sales: Cooperating with tens of thousands of customers, intelligent interconnection, worry-free after-sales. We are listed brand with strong strength, we offer customized service 24/7 online, and real-time response in the cloud. Including user profile creation for tracking service, equipment can be intelligently interconnected to achieve remote operation and maintenance.
Advantage:
Intelligent Holographic Flash Camera Compatible with CMOS or CCD image sensors
Flexible switch between visible lens or infrared lens35K high-speed imaging +350 million pixel ultra-clear resolution
LED light source
Flexible Light Source Configuration: For different raw
material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information
acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance.
Dedicated Image Processing Algorithm According to the characteristics of material, use the shape and color combination algorithm; For materials with
complex colors, the machine sorts materials more directly and accurately by using HSV-changed color space sorting method.
High-Quality Solenoid Valve
Use High-quality,high-frequency,long service life ejecter, super low air consumption guaranteed the biggest capacity, excellent rejection output. For the different sizes and
characteristics of material particle, use the solenoid valve of different sizes.
Simple Operation
Simple optical system design, precise automatic correction system, combined with the well-designed human-
machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
The Color sorter work principle:
Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
From Customer's Site :
Frequently Asked Questions:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Why Choose Wenyao Color Sorter?
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
