Wenyao Soybean Corn Rice Sugar Coffee Bean Color Sorter Machine New Design Full Automatic Color Sorter Machine
It can sort water yellow rice, belly white rice, blackheads, grass seeds, impurities, etc., intelligent sorting, quality upgrades, let your rice sell at higher prices.
Choose more rice types: red rice, black rice, germ rice, brown rice, rice, black rice, red rice, small yellow rice, barley rice, saponified rice
Technical Parameters:
| MODEL |
WYCS3-192 |
| Chutes/Channels |
3-192 |
| Throughput(t/h) |
500 kg /H |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1600w |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
800-1800 L/Min |
| Weight |
600kg |
| Dimension(L*W*H) |
1620*1535*1832mm |
Examples of color sorting:
Feature:
· High level AI self-learning function,one-key automation,user friendly interface,easy operation
· Multi-function,multi-purpose,widely used for coffee bean,rice,grain ,walnuts,almond,plastic,chinese herbals etc.
· Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
· Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
· High end specification ensures high stability with high sorting accuracy, small carry over and low energy consumption.
The system operates on the following principle:
1. Feeding & Alignment: Bulk pepper seeds are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.
2. Optical Scanning: The aligned seeds free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:
· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.
· Advanced CCD/CMOS Cameras: Capture detailed images of each seed from multiple angles.
3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each seed against user-defined acceptance parameters. Seeds that are discolored, moldy, immature, or mechanically damaged are identified as rejects.
4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.
5. Separation & Collection: The ejected defective seeds are diverted into a reject channel, while the accepted, high-quality pepper seeds continue their natural trajectory into the "good product" collection hopper.
-

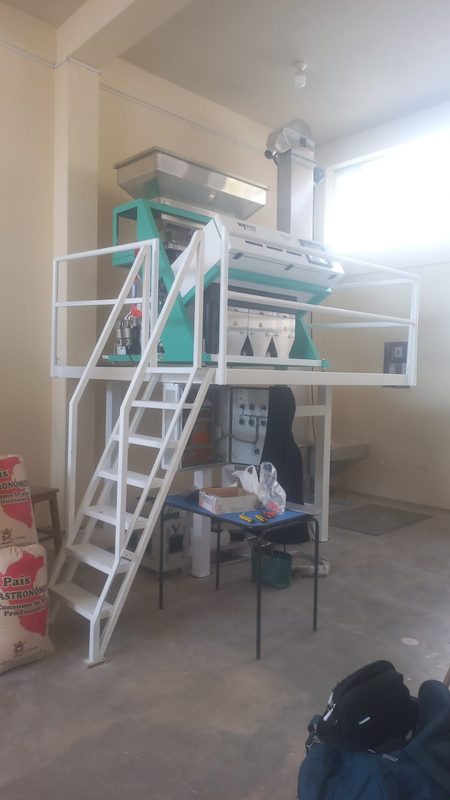

- Customer's Site :
