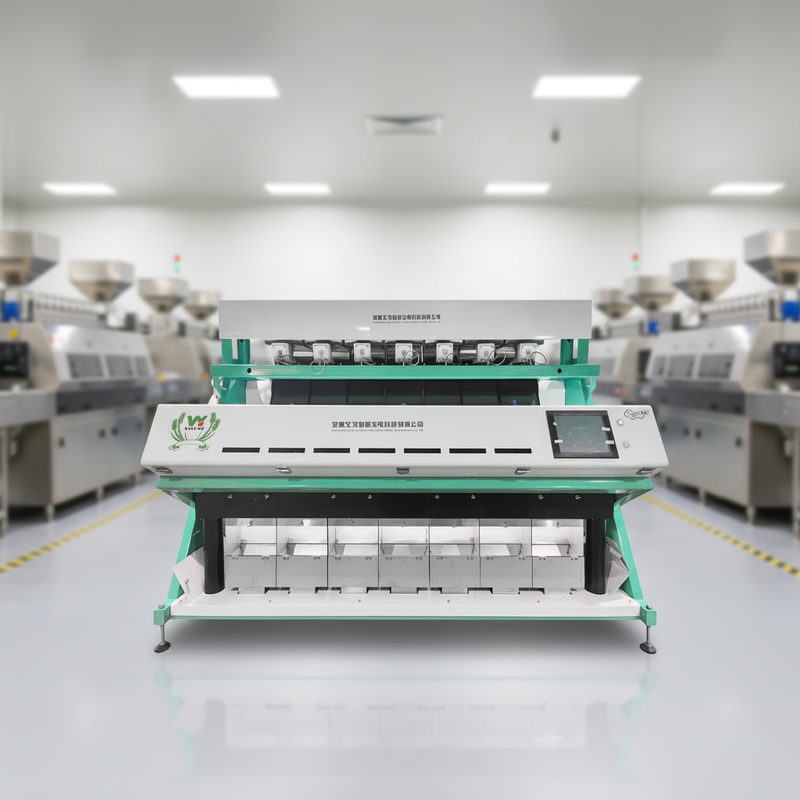

Wenyao Multifunction Color Sorting Machine For Pistachio Almond Pistachio Kernel Color Sorter Machine
1. WENYAO Colour Sorter Machine Working Pricinple
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
2. Technical Parameters:
| MODEL |
WYCS7-448 |
| Chutes(channels) |
7(448) |
| Sorting accuracy(%) |
≥99.9 |
| Carryover rate (bad:good) |
≥30:1 |
| Output(T/h) |
≥2 |
| Voltage |
180-240V/50Hz |
| Power supply(kw) |
3.7 |
| Work Air Pressure(Mpa) |
0.2-0.3 |
| Air consumption(L/min) |
1800-3800 |
| Air supply(Mpa) |
0.6--0.8 |
| Dimension(L*W*H) mm |
2874*1560*1860 |
| Weight(kgs) |
1350 |
| Package |
Plywood case |
| Package Size mm |
3280*1680*2060 |
Pistachio color sorters are automated machines that use advanced optical sensors and AI to detect and remove defects, shells, mold, and foreign materials from pistachios. They dramatically increase processing efficiency and quality control for both raw and roasted pistachio kernels and in-shell nuts.
4. Examples of Color Sorting Examples
How to get the correct size and suitable price of wenyao color sorter machine?
Step 1. Which kinds of the material do you want to sort ?
Step 2. How much input capacity for the raw materials per hour?
Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)
5. Our Service:
A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B:For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6.Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
Application of Color Sorting
WY series color sorter is suitable for a variety of products, such as agricultural products, plastic and glass industrial products, etc.
Package :
7.FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5. How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
Color Sorting Advantage
1. Our engineers will advise you on the best possible machine configurations to meet your sorting requirements.The machine is configured to the best condition for your needs
2. The WY model has a new automatic dust removal system, which can automatically clean the core parts of the machine and improve the accuracy of color selection
3. German OSRAM LED lamp beads, TOSHIBA sensor and IC, SMC filter components, Intel processor, Meanwell power supply
The full coverage gradient dust removal system can be equipped with an optional suction and dust removal device, which has a more reasonable structure, stronger suction force, and cleaner dust removal.
Al Smart Core Processing Platform, Faster and Smarter
Equipped with SOC intelligent chips and integrating AI deep learning algorithms, a sorting platform with higher integration, faster computation, and stronger processing capabilities is constructed.
Intelligent holographic flash camera, high-resolution and clearer
Equipped with a self repairing loop lens and adapted to intelligent image sensors, achieving 260 million pixel ultra clear resolution
Center positioning removal algorithm, efficient and more accurate
The algorithm fits the digital model of defective materials, marks the center point of the material, and achieves small gas volume and more accurate center removal.
Intelligent variable frequency solenoid valve, saving gas and electricity
Adaptive injection system, no exhaust gas, no air leakage, fast response speed, low power consumption, and long service life.
Color restoration algorithm, clear and more realistic
Integrating multidimensional data such as light, quality, color, and shape, achieving quantum level recognition of rice raw materials and restoring their true colors.
LED optical sensing system, energy-saving and more durable
Adopting low-temperature spotlight LED light source, intelligent dimming, 16 million color mixing options, energy-saving and more durable.
